Salient Features
Easy to handle
Corrosion-free
Ultimate Tensile Strength and Impact Strength
Maximum Water Yield
Easy Connection and Installation
Fire Resistant
Long Life
Specification
Maximum Ambient Temperature 70°C

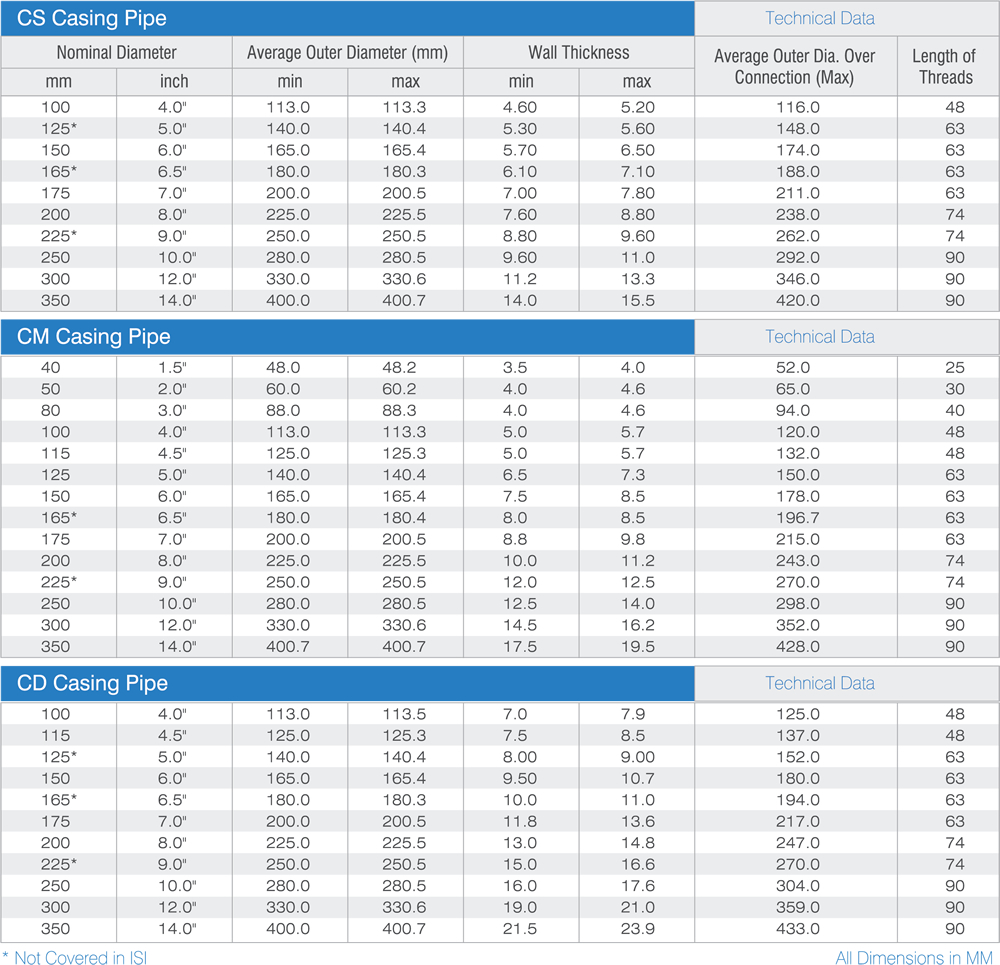

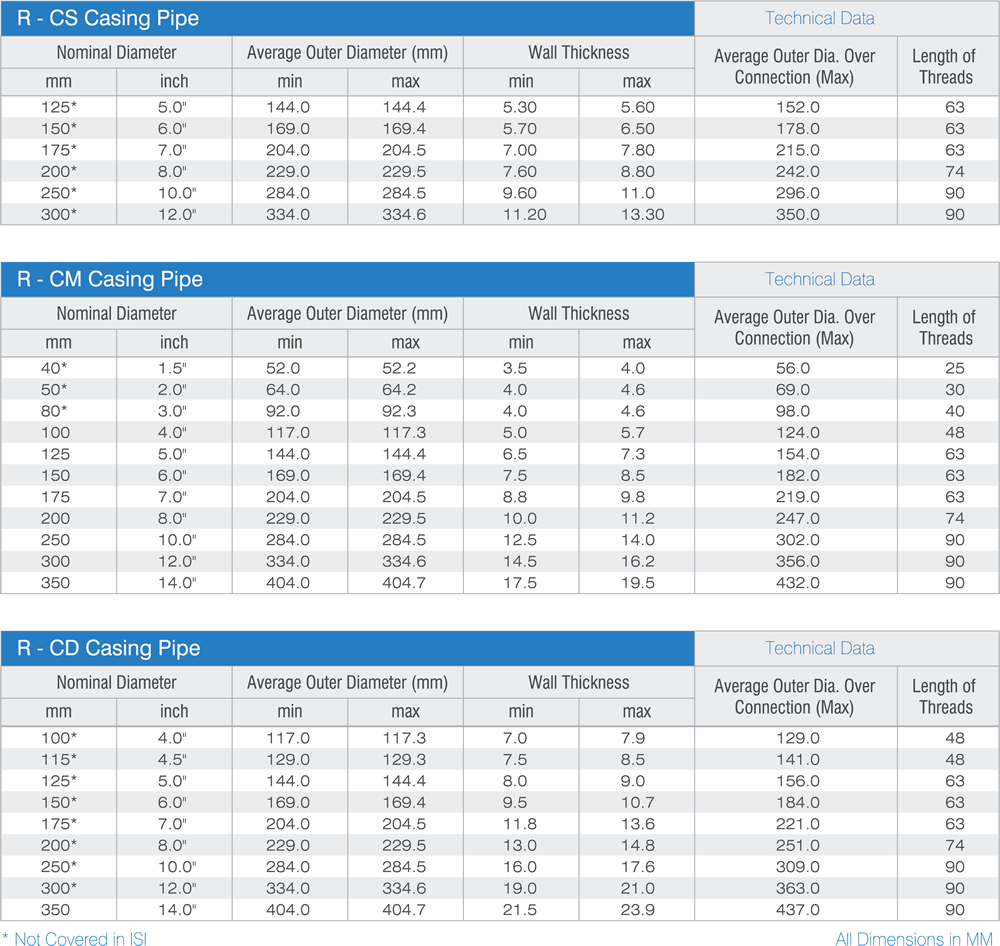

Maximum Installation Depth 250 m for CM Series, 450 m for CD Series and 80 m for CS Series
Installation: Vertical, Horizontal or Inclined
Special Features
IS 12818:1992 is equivalent to DIN 4925.
The surface of this pipe is extremely smooth, which reduces hydraulic friction losses

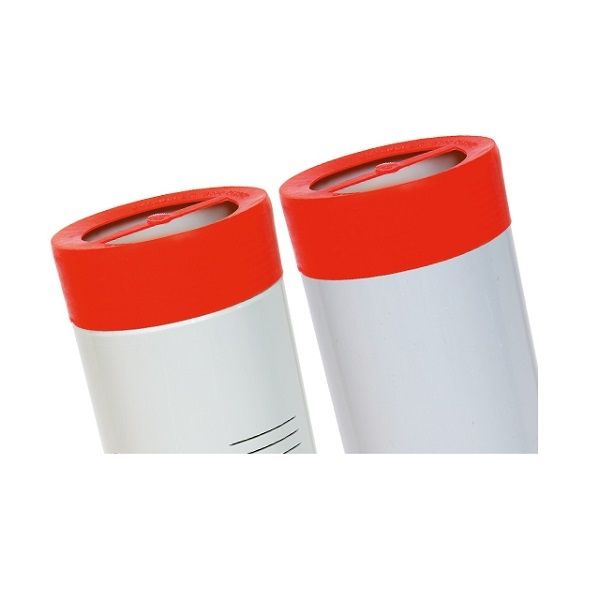

Internal and external threaded and bell ends and reliable connection

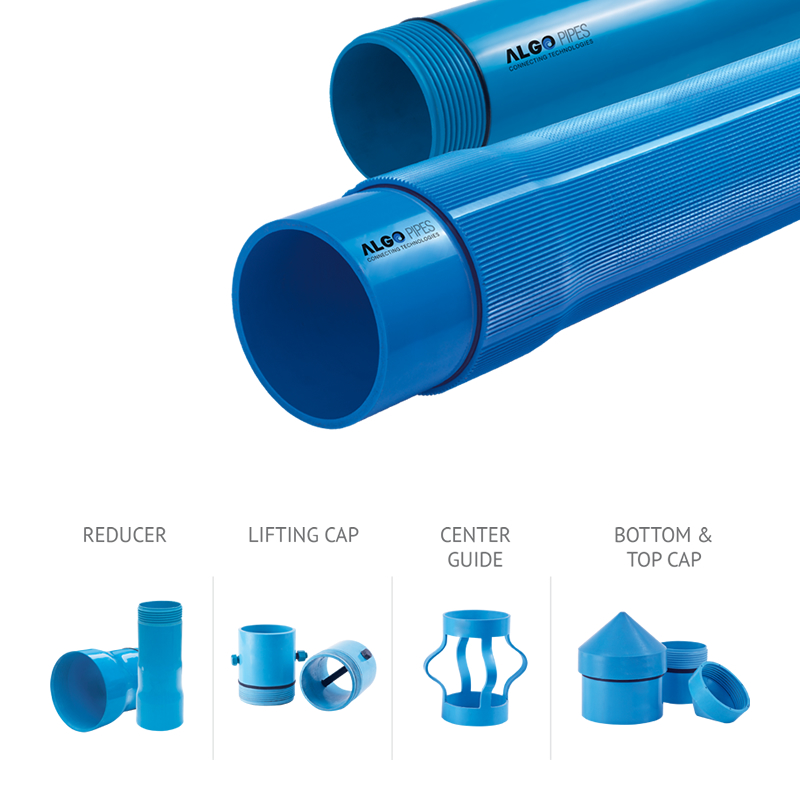

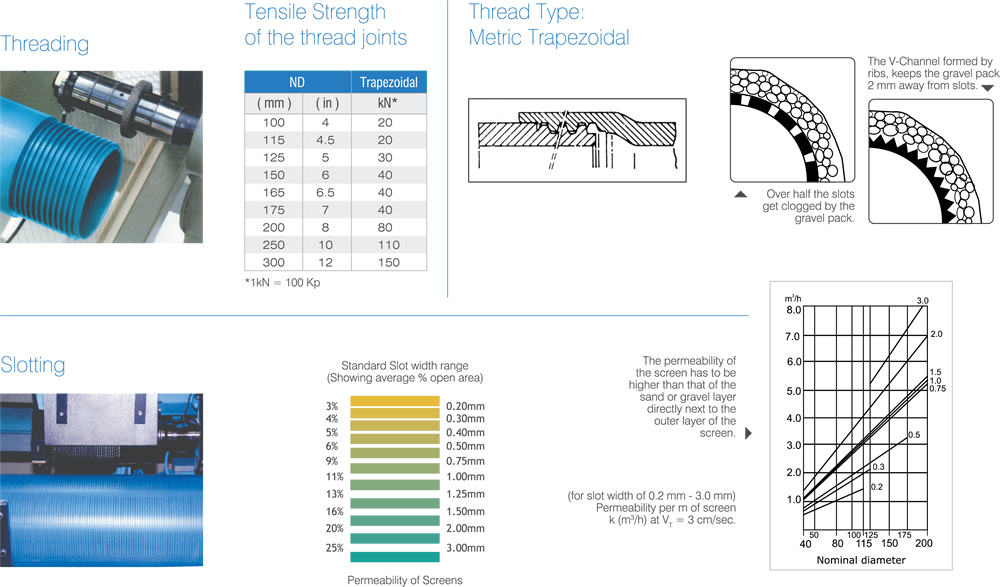

The corrugated screen is especially used when the external surface area of the borehole pipeline is increased. These ribs provide approximately 25% of the additional surface area due to their design. Furthermore, it keeps the gravel balls approximately 2mm away from the pipe, which makes it easier to clean the crevices due to the vertical flow passage and allows more water to seep through, resulting in higher yield than other flat screen pipes from the same hole.
Other Advantages

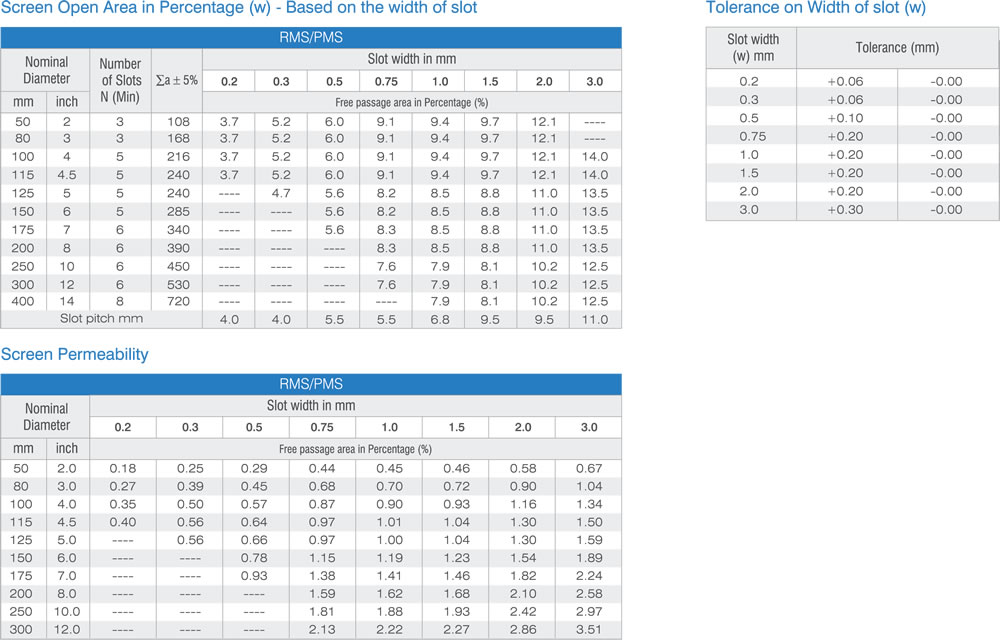

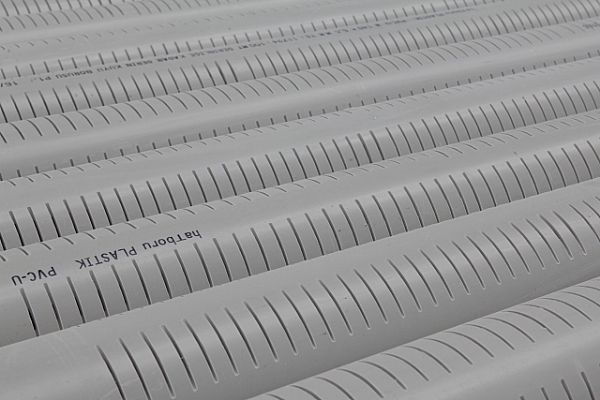

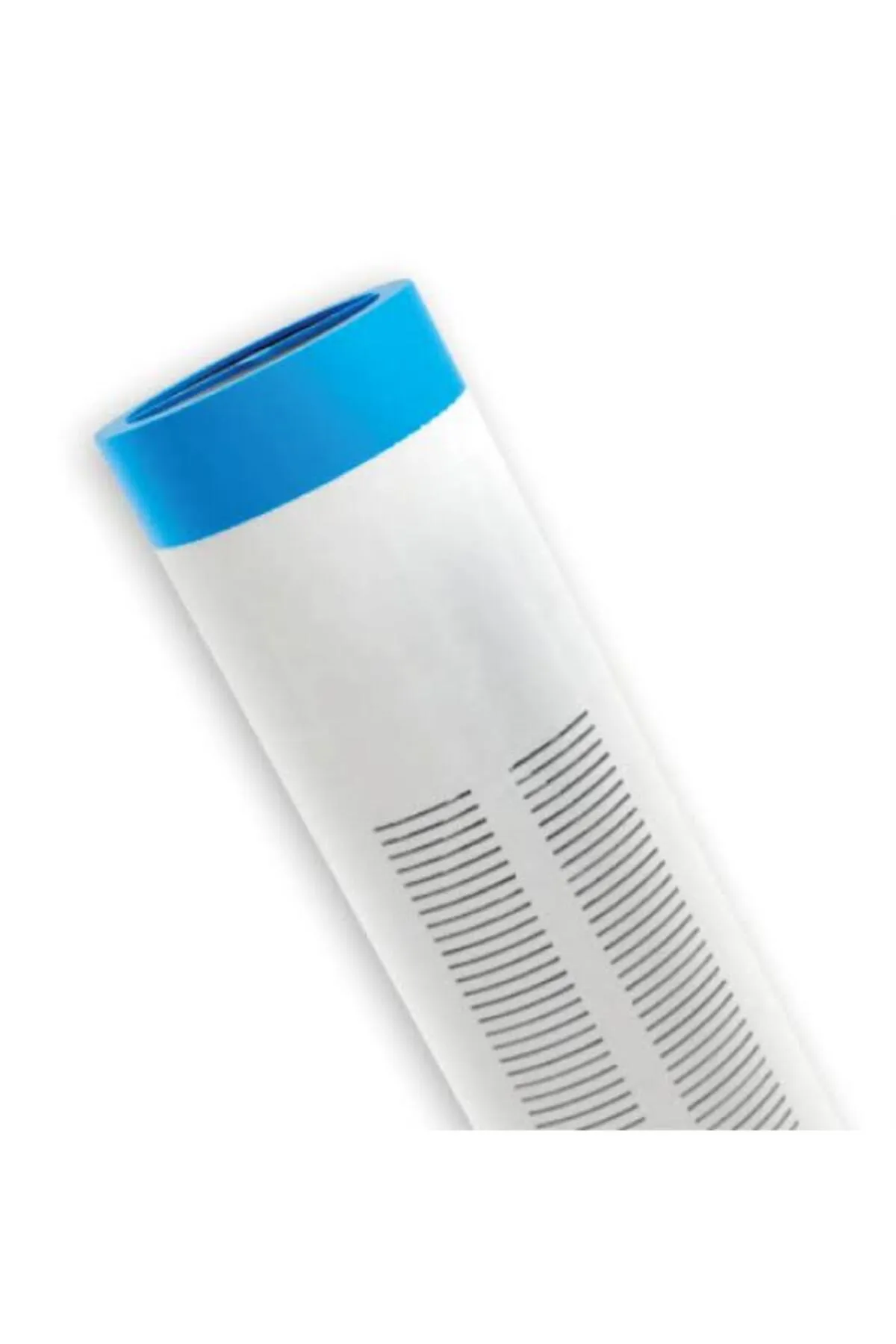

Horizontal slots to achieve maximum water yield
Special male female square threads to provide better strength
Very high impact strength to resist external pressure
Applications
Borehole, Irrigation, Domestic, Industrial mining, Chemical distribution
A wise replacement for MS, ERW, Gl, Asbestos and Cement and Stainless Steel pipes
uPVC is virtually inert to corrosion, chemical reaction and is therefore ideally used in salty, sandy and chemically aggressive waters.
